CJ2M-CPU34 | OMRON Programmable Controllers CJ2M-CPU34

OMRON CJ2M-CPU34 Manual And Instructions
CJ2M-CPU34 datasheetPDF datasheet
CJ2M-CPU34 OPERATION MANUAL
CJ2M-CPU34 OPERATION MANUAL
CJ2M-CPU34 PROGRAMMING MANUAL
CJ2M-CPU34 INSTRUCTIONS REFERENCE MANUAL
CJ2M-CPU34 Communications CommandsREFERENCE MANUAL
CJ2M-CPU34 INSTRUCTIONS REFERENCE MANUAL
CJ2M-CPU34 SoftwareUSER'S MANUAL
CJ2M-CPU34 HardwareUSER'S MANUAL
CJ2M-CPU34 Safety Precautions

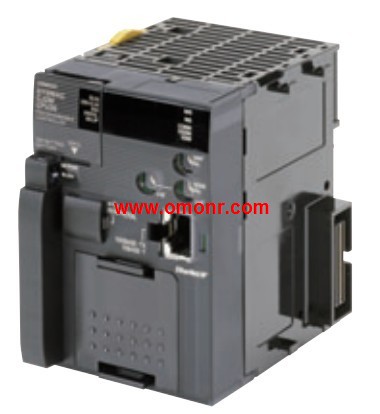

OMRON CJ2M-CPU34 Product information and technical parameters:
Brand: OMRON
Name: Programmable Controllers
Model: CJ2M-CPU34
Product name: CJ2M (Built-inEtherNet/IP) CPU Units.
Specifications: I/O capacity/Mountable Units(Expansion Racks),
2, 560 points/40 Units(3 ExpansionRacks max. );Programcapacity,
30K steps;Data memorycapacity, 160K words,
(DM: 32K words, EM: 32K words ×4 banks);
LD nstruction execution time, 0. 04 μs;
EtherNet/IP function: YES;
Option board slot: YES.
Current consumption (A): 5V, 0. 7(See note. );24V, --.
Standards: UC1, N, L, CE.
CJ2M for basic machine automation.
The CJ2M Series is ideal for packaging and general.
machine automation needs. Connectivity is assured.
thanks to the built-in USB port and the choice of.
Ethernet and RS-232C/422/485 interfaces on the CPU.

Unit type: CJ1 Basic I/O Units.
Product name: DC Input/Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 32 inputs, 32 outputs;
Input voltage,Input current, 24VDC, 4.1mA,
12 to 24VDC, 0.3A;
Commons, 16 points, 1 common;
External connection, MIL connector.
No. of words allocated: 4 words OMRON CJ2M-CPU34.
Current consumption: 5V, 0.14A; 24V, --.
Standards: UC1, N, CE CJ2M-CPU34
A Wide Range of Basic Mixed,
I/O Units for Different Applications,
and Wiring Methods.
One Mixed I/O Unit has connectors for,
both inputs and outputs.
Use Mixed I/O Units to easily ,
build space-saving systems.
Product name: CJ1M CPU Units; Without built-in I/O.
Specifications: I/O capacity/Mountable Units Expansion Racks),
320 points/10 Units (No Expansion Rack); Program capacity,
10K steps; Data memory capacity, 32K words(DM: 32K words, EM: None);
LD nstruction execution time, 0 OMRON CJ2M-CPU34. 1 μs.
Current consumption: 5v, 0.58A (Seenote 1.) ; 24V,--.
Standards: UC1, N, L, CE.
Versatile Machine Control with the,
Highest Performance Standards in the Industry. Name: Loop-control CPU Unit OMRON CJ2M-CPU34.
I/O bits: 1,280 bits.
Program capacity: 60K steps.
DM words: 32K words.
EM words: 32K words × 3 banks E0_00000 to E2_32767.
Versatile Machine Control with the,
Highest Performance Standards in the Industry. Unit classification: CJ1 Special I/O Units.
Product name: ProcessInput Units,
(Isolated-type Thermocouple Input Units).
Input points: 4 inputs.
Signal range selection: Common inputs.
Signal range: Thermocouple: R, S, K, J, T, L, B.
Conversion speed (resolution): Conversion,
speed: 250 ms/4 inputs.
Accuracy at ambient temperature of 25°C:
Accuracy: (±0.3% of PV or ±1°C,
whichever is larger) ±1 digit max.
External connection: Removable terminal block.
No. of unit numbers allocateed: 1 CJ2M-CPU34.
Current consumption: 5V, 0.25A; 24V, --.
Standards: UC1, CE.
A Single Unit Handling All Types of Inputs,
such as Temperature Sensor Inputs and,
Analog Signal Inputs (e.g., 4 to 20 mA or 1 to 5V).
A Unit supports four inpuut channels,
each of which can be set to a
platinum resistance thermometer, thermocouple,
and DC signal (current, voltage) CJ2M-CPU34.
All inputs are isolated.
