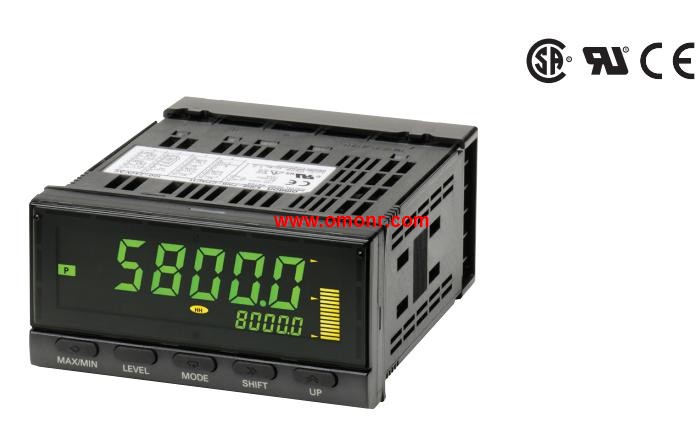

K3HB-P Series | OMRON Timer Interval Indicator K3HB-P Series

K3HB-P Series Introduce | K3HB-P Series Model |
K3HB-P Series Catalog / Manual / Instructions / Software download

OMRON K3HB-P Series Manual And Instructions
K3HB-P Series datasheetPDF datasheet

OMRON K3HB-P Series Product information and technical parameters：
Brand: OMRON
Name: Timer Interval Indicator
Model: K3HB-P Series
Digital Time Interval Meter for Measuring.
Passing Speed, Time, or Cycle between Two.
Points.
Visual confirmation of judgement results through display colors that,
switch between red and green.
Measures Wide Range of Pulse Interval Times.
Measures, calculates, and displays pulse intervals between two points.
Wide range for pulse interval measurements, from 10 ms to 3,200 s, max.
Six Measurement Operations, Including Passing Speed, Time, and,
Cycle Measurement between Two Points.
One Digital Time Interval Meter has six measurement functions, to support a,
variety of pulse interval measurement applications. Select the best function,
for your application from the following: Passing speed, cycle, time difference,
time band, measuring length, and interval.
DeviceNet models added to the series.

DIN-sized (72 x 72 mm) Quartz Timer with,
Multiple Functions.
Wide time range from 1/100 seconds to 9999 hrs.
Built-in power supply incorporated in timer enables direct,
connection of sensors and other components.
Draw-out construction allows maintenance without,
disconnecting the wiring.
Power supply freely selectable within a range of 100 to 240 VAC;
a DC-operated version is also available OMRON K3HB-P Series K3HB-P Series
Control outputs of both contact type and transistor type,
simultaneously available.
Seven operating modes (N, F, C, R, K, P, and Q) are available. Preset stage: 1-stage setting.
Nameplate lettering: English.
Nine Built-in Counters/Timers to.
Measure Equipment Operating.
Cycles and Times and Forecast OMRON K3HB-P Series.
Maintenance Timing.
Provides up to nine counters or accumulative timers.
(Counter and timer functions can be used at the same time.)
Individual forecast outputs to indicate maintenance timing.
Pre-forecast display and machine stoppage output provided.
IP54 oil-proof type at setting area for resistance to oil and water.
Separate digit keys to easily change settings.
Compact, short-body: 72 × 72 × 79 mm (DIN) OMRON K3HB-P Series.
Key protection function prevents incorrect operation.
Multiple outputs: NPN/PNP.
Directly connectable to 2-wire DC sensors.
Complies with UL and CSA. Timer input: No-voltage input.
Display: 7-segment LCD.
Time range: 999999.9h ←→ 3999d23.9h(switchable); Light-gray body.
Seven digits, time range 0 to 3999d23.9h.
Dual time range: 999999.9 ←→ 3999d23.9h or,
999h59m59s ←→ 9999h59.9m. Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET) equipped with.
External power supply DC12V80mA.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
Linearity: voltage; NPN open collector (HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power suupply voltage: AC100 ~ 240V K3HB-P Series.
Measurement of 2 points through the speed, time, or cycle of the digital time interval table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of wide range off pulse interval time K3HB-P Series.
Measuring, calculating and displaying the pulse interval between 2 points.
Pulse interval measurement range, maximum measurable
