ZEN-10C1DT-D-V2 | OMRON Programmable Relay ZEN-10C1DT-D-V2

OMRON ZEN-10C1DT-D-V2 Manual And Instructions
ZEN-10C1DT-D-V2 datasheetPDF datasheet
ZEN-10C1DT-D-V2 Operation Manual
ZEN-10C1DT-D-V2 REFERENCE MANUAL
ZEN-10C1DT-D-V2 REFERENCE MANUAL

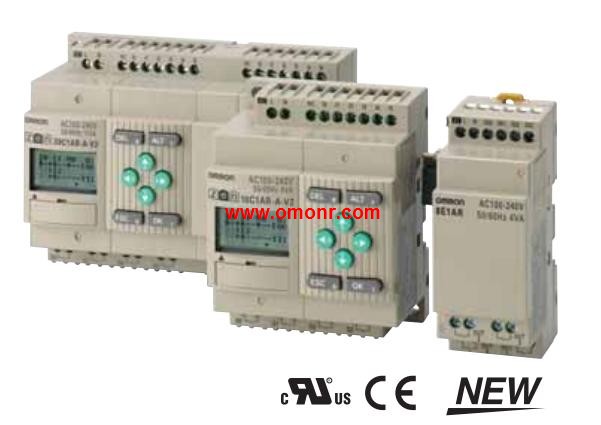

OMRON ZEN-10C1DT-D-V2 Product information and technical parameters:
Brand: OMRON
Name: Programmable Relay
Model: ZEN-10C1DT-D-V2
Unit: CPU Units.
Name: Standard LCD type.
No. of I/O points: 10.
LCD display: Yes.
Power supply voltage: 12 to 24 VDC.
Inputs: 6, 12 to 24 VDC.
Outputs: 4, Transistors.
Buttons, calendar, and clock: Yes.
Analog input: Yes.
Even Broader Applications with Increased.
Functionality and Higher Precision.
Increased functionality in a compact body (70 mm wide × 90 mm high).
Easy programming is available using the LCD and operation,
buttons. (See note 1.).
This single Unit easily provides relay, timer, counter, and time,
switch functions.
Expansion is easy with Expansion I/O Units, allowing up to 44,
I/O points. (See note 2.).
Economy-type and Communications-type CPU Units have been,
added to series.
Improved Weekly Timers (See note 1.).
Increased timing accuracy with a monthly deviation of ±15 s,
max. Multiple-day operation and pulse output operation have,
been added.
Select from two power supply options:
100 to 240 VAC or 12 to 24 VDC.

Classification: Preset Counter.
Input signal system (Count & reset inputs): Contact, Transistor.
Mounting method: Flush mounting, surface mounting.
Display: 7-segment LEDs (10 mm high), Up indicator.
Number of digits: 4 digits (0 to 9,999).
Backup power for memory protection: Yes (100 to 240 VAC only) OMRON ZEN-10C1DT-D-V2.
Control output: Contact (SPDT).
Operating mode: Up counting.
Max.counting speed: 30 cps ZEN-10C1DT-D-V2
All Required Counter Functions.
Incorporated in a Compact DIN-sized.
(48 × 48) Housing.
In addition to Up and Down models, a reversible (Up-Down),
counter is also available.
Maximum counting speed of 5,000 cps, never before attained by,
a small-size preset counter.
Power supply freely selectable within a range of 100 to 240 VAC OMRON ZEN-10C1DT-D-V2.
Also, power supply for the DC-operated models is selectable,
within a range of 12 to 48 V.
Models with memory backup function against power failure available. Type of input: AC voltage input.
Output type: transistor; -; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V OMRON ZEN-10C1DT-D-V2.
Power supply voltage: AC/DC24V.
96 (W) * 48 (H * 95mm) some models are not equipped with depth.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceNet type systemInput type: Rotary pulse.
Supply voltage: 24 VAC/VDC.
Output: None.
Highly Visible LCD Display with 2-color (Red and Green) LEDs.
Contact, NPN, PNP, or voltage pulse input.
Front-panel key operation for easy setting.
Average processing function suppresses flicker.
Includes scaling, auto-zero time, startup compensation time functions.
Easy cconfirmation of max/min display ZEN-10C1DT-D-V2.
Short 80-mm depth (measured from edge of face plate).
Finger protective cover (standard equipment) guards against electric shock.
Water- and dust-proof NEMA4X (IP66 equivalent) front panel.
Recognnized to U ZEN-10C1DT-D-V2. S. and Canadian requirements under the Compo,
nent Recognition Program of UL.
CE marking.
Built-in external power supply (12 VDC, 40 mA).
